Suntex
Specific Gravity Transmitter
Online specific gravity transmitter with load cell technology for long-term reliability and accuracy. Converts SG to Baumé, salinity or concentration, ideal for electroplating, etching, scrubbers, electrolyte concentration, surface treatment and antifreeze.
Key Features
- Measures specific gravity, Baumé, salinity and concentration
- Real-time online SG measurement optimizes production efficiency
- Load cell technology for long-term reliability and accuracy
- Convenient calibration with low maintenance
- Changeable SG/concentration conversion table (up to 10 points)
- Automatic or manual temperature compensation
- Isolated 0/4~20mA current output
- Two programmable ON/OFF relays (Hi/Lo, Hi/Hi, Lo/Lo)
- RS-485 Modbus communication with 50 event logbook
- Trace mode history curve display
- Password protection

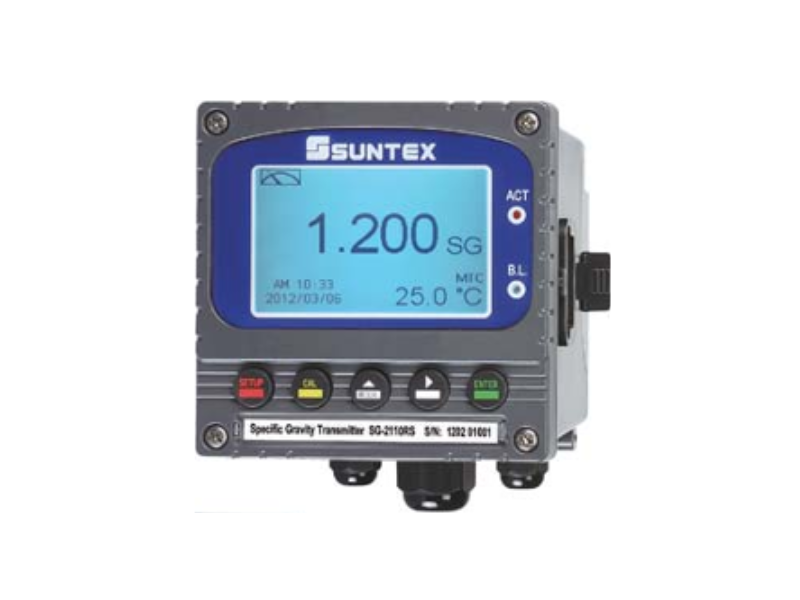

- 96 x 96 mm transmitter with panel, wall or pipe mounting
- Transmitter IP65 (NEMA 4X)
Product Description

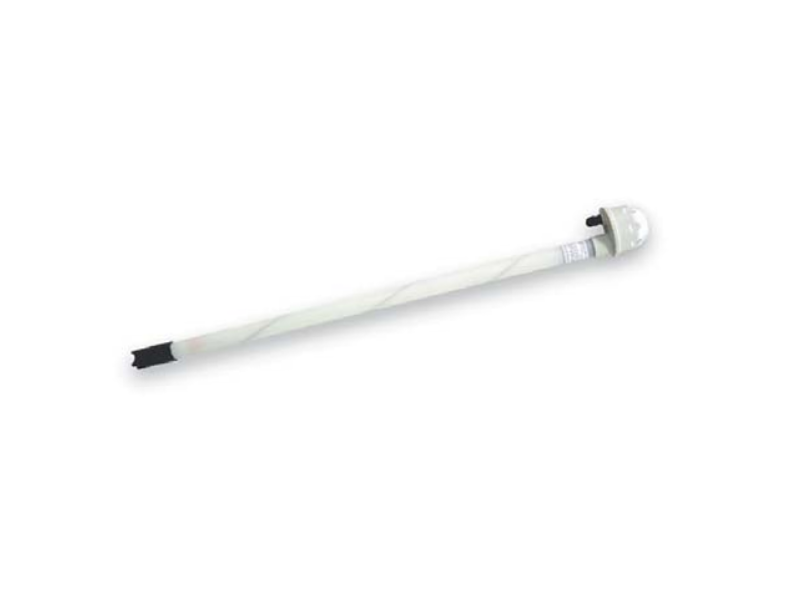

This Suntex specific gravity transmitter provides accurate, reliable, real-time online SG measurement for demanding process applications. Its load cell technology with a plummet sensor delivers long-term reliability and accuracy, with convenient calibration and low maintenance.
The transmitter converts SG readings to Baumé, salinity or concentration, with a changeable SG/concentration table of up to 10 points. It also offers trace mode history curve display, event logbook, RS-485 interface, two programmable contact outputs and password protection.
Typical applications include electroplating, etching, scrubbers, electrolyte concentration, surface treatment and antifreeze.
The transmitter converts SG readings to Baumé, salinity or concentration, with a changeable SG/concentration table of up to 10 points. It also offers trace mode history curve display, event logbook, RS-485 interface, two programmable contact outputs and password protection.
Typical applications include electroplating, etching, scrubbers, electrolyte concentration, surface treatment and antifreeze.
Technical Specifications
| Model | SG-2110-RS |
|---|---|
| Measuring Modes | Specific Gravity / Baumé / Salinity / Concentration / Temperature |
| SG Range | 0.000 to 2.200 SG (with standard plummet) |
| Temperature Range | -30 to 130°C |
| Accuracy | ±0.002 SG ±0.2°C (Temp) |
| Unit Conversion | SG to Baumé (°Bé), salinity (ppt) or concentration (%) |
| Concentration Table | Changeable SG/concentration table, up to 10 points |
| Temperature Compensation | Automatic or manual, SG value compensated at 20°C |
| SG Temperature Coefficient | Linear temperature compensation |
| Calibration | Zero point and span (for plummet volume and weight) |
| Plummet Constant | Settable 1 to 99999 |
| Analog Output | Isolated 0/4~20mA, max load 500Ω |
| Serial Interface | RS-485 Modbus RTU/ASCII |
| Event Logbook | 50 event records |
| Relay Contact | 240VAC, 0.5A max |
| Power Supply | 100 to 240 VAC ±10%, 50/60 Hz, 6W max |
| Ambient Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Installation | Transmitter panel, wall or pipe mounting SG sensor installed to suit field conditions |
| Dimensions | Transmitter 96 x 96 x 132 mm |
| Panel Cut-out | Transmitter 93 x 93 mm |
| Weight | Transmitter 0.5 kg SG sensor 0.7 kg |
| Protection | Transmitter IP65 (NEMA 4X) |
