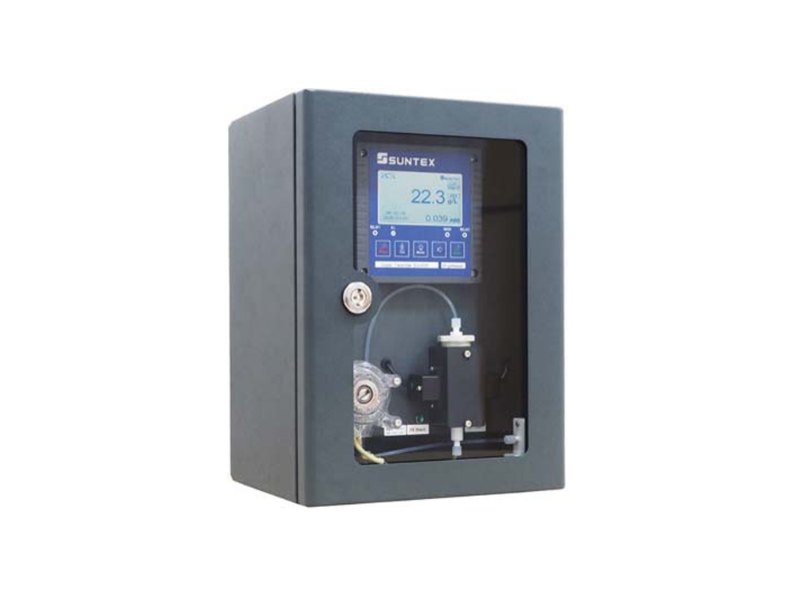

Nickel Analyzer
Reagent-free nickel ion analyzer using spectrophotometry, with a built-in peristaltic pump for autom...
1×
Suntex

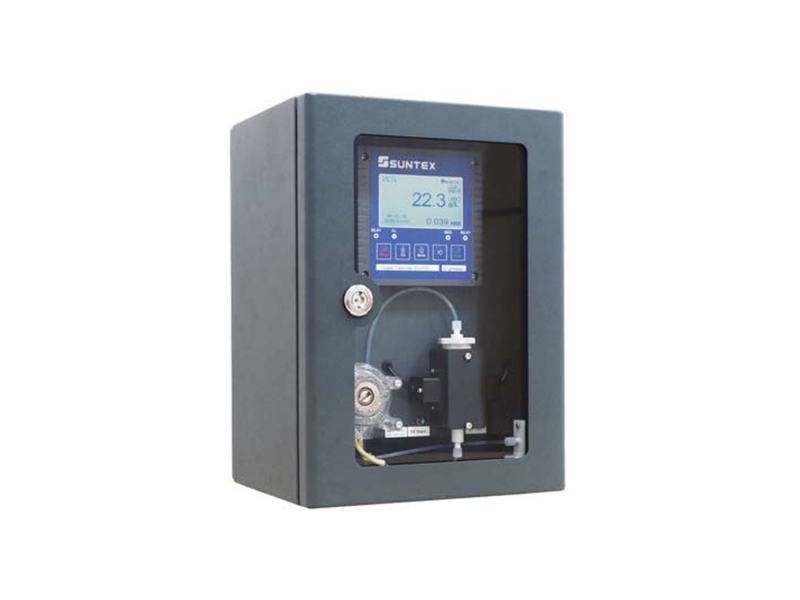

Copper Analyzer
Reagent-free copper ion analyzer using spectrophotometry, with a built-in peristaltic pump for automatic sampling and long-life LED light source. Ideal for PCB manufacturing, copper solution monitoring, etching and electroplating.
Key Features
- Reagent-free copper ion measurement
- Spectrophotometry principle with different range models
- Measures copper ion and CuSO4 concentration
- Built-in peristaltic pump for automatic sampling
- Long-life LED light source
- Reduced maintenance frequency and cost
- Two-point calibration and adjustment of measured values
- Icon based graphic menu for intuitive operation
- Text, trace and chart mode display
- Isolated 0/4~20mA current output
- Two programmable ON/OFF relays (Hi/Lo, Hi/Hi, Lo/Lo)
- RS-485 Modbus communication with 50 event logbook
- Automatic wash function
- IP54 waterproof and dustproof
Product Description
This Suntex copper analyzer provides precise and reliable copper ion measurement without reagents, using spectrophotometry. A built-in peristaltic pump handles automatic sampling, and the long-life LED light source and reagent-free design reduce maintenance frequency and cost.
It is easy to calibrate with two-point calibration and adjustment of measured values. The controller has an icon based graphic menu, measurement curve display, event logbook and RS-485 interface. Three range models are available for different copper concentrations.
Typical applications include PCB manufacturing, copper solution monitoring, etching and electroplating.
It is easy to calibrate with two-point calibration and adjustment of measured values. The controller has an icon based graphic menu, measurement curve display, event logbook and RS-485 interface. Three range models are available for different copper concentrations.
Typical applications include PCB manufacturing, copper solution monitoring, etching and electroplating.
Technical Specifications
| Model | SCU-9100 |
|---|---|
| Range Models | SCU-9100-L SCU-9100-M SCU-9100-H |
| Principle | Spectrophotometry, reagent-free |
| Copper Ion (Cu2+) Range | 0.00 to 40.00 g/L (SCU-9100-L) 0.0 to 80.0 g/L (SCU-9100-M) 0.0 to 200.0 g/L (SCU-9100-H) |
| CuSO4 Concentration Range | 0.00 to 160.00 g/L (SCU-9100-L) 0.0 to 320.0 g/L (SCU-9100-M) 0.0 to 800.0 g/L (SCU-9100-H) |
| Accuracy | <±2% full scale |
| Analog Output | One isolated 0/4~20mA for copper ion, max load 500Ω |
| Serial Interface | RS-485 Modbus RTU/ASCII |
| Event Logbook | 50 event records |
| Relay Contact | 240VAC, 0.5A max |
| Power Supply | AC 220V, 60Hz (SCU-9100-X-220-60) AC 220V, 50Hz (SCU-9100-X-220-50) AC 110V, 60Hz (SCU-9100-X-110-60) |
| Power Consumption | Approx. 30W |
| Ambient Temperature | 0 to 50°C |
| Installation | Platform mounting |
| Dimensions | 405 x 321 x 253 mm |
| Weight | 10 kg |
| Protection | IP54 |
