Suntex

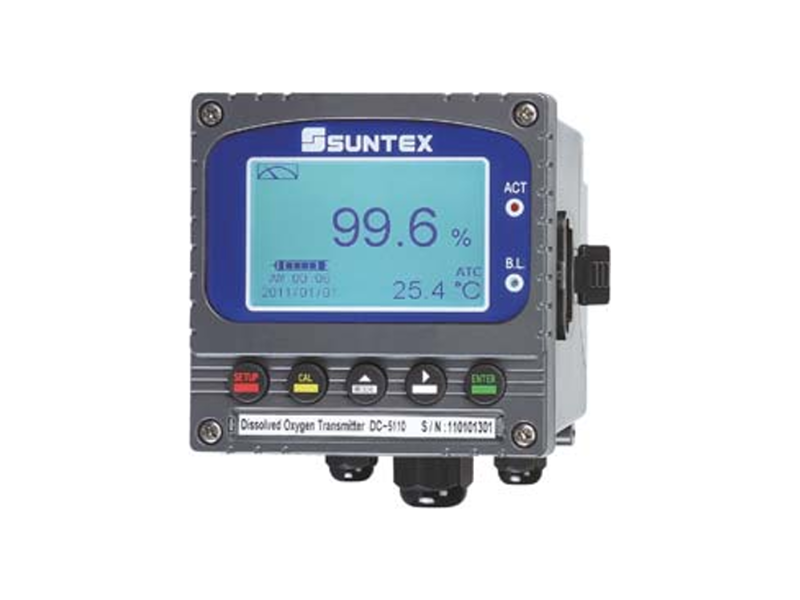

Dissolved Oxygen Transmitter
Dissolved oxygen transmitter compatible with pre-amplified and polarographic D.O. sensors, with salinity and pressure correction and isolated 4~20mA output. IP65 rated for wastewater aeration, fish farming, fermentation and environmental monitoring.
Key Features
- 96 x 96 mm (1/4 DIN) compact design

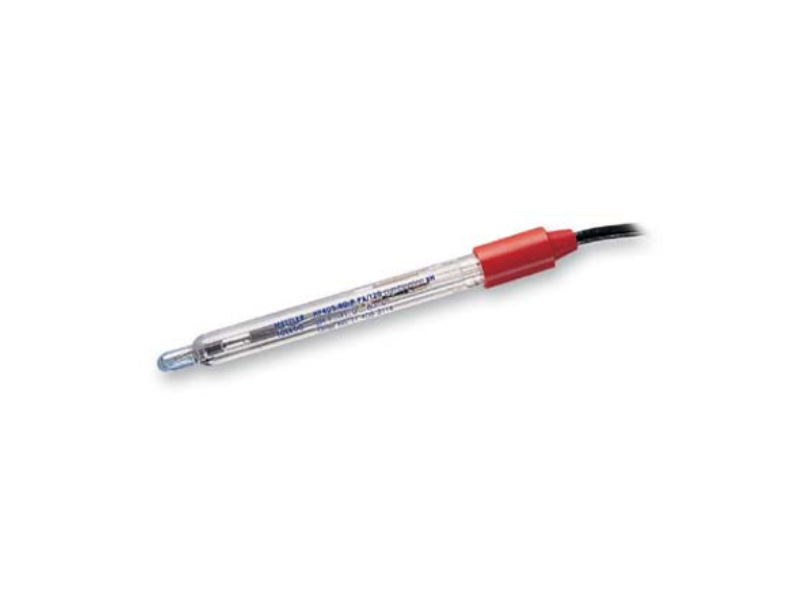

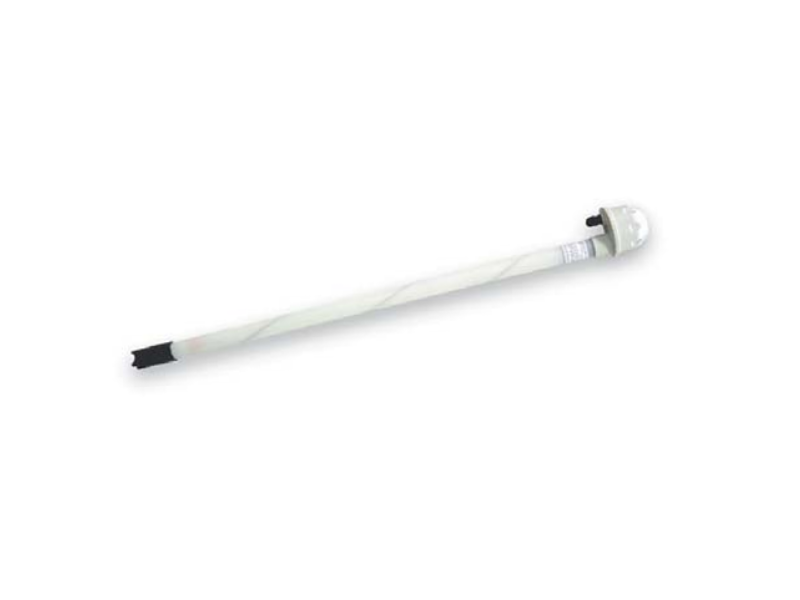

- Compatible with WTW pre-amplifier 690 sensor and polarographic analog sensors
- Measures %saturation, mg/l (ppm) and temperature
- Back-lit LCM display with graphical menu
- Setting and last calibration info overview
- Sensor slope status indicator for pre-amplifier sensor
- Salinity and atmospheric pressure correction
- Automatic temperature compensation (NTC 30K or NTC 22K)
- Isolated 0/4~20mA current output
- Two programmable alarm relays (Hi/Lo, Hi/Hi, Lo/Lo)
- Automatic wash function
- Text, chart and trend display with RS-485 and event logbook (optional)
- Password protection
- IP65 (NEMA 4X) waterproof and dustproof
Product Description
This Suntex dissolved oxygen transmitter works with both pre-amplified and polarographic D.O. sensors in a compact 1/4 DIN housing. Its graphical menu shows setting and calibration information in full text pages, making every function easy to operate.
It measures D.O. in %saturation and mg/l (ppm), with automatic temperature compensation plus salinity and atmospheric pressure correction for accurate readings. An optional version adds a graphical trend curve, event logbook and RS-485 interface.
Typical applications include wastewater aeration, fish farming, fermentation and environmental monitoring.
It measures D.O. in %saturation and mg/l (ppm), with automatic temperature compensation plus salinity and atmospheric pressure correction for accurate readings. An optional version adds a graphical trend curve, event logbook and RS-485 interface.
Typical applications include wastewater aeration, fish farming, fermentation and environmental monitoring.
Technical Specifications
| Models | DC-5110 DC-5110-RS |
|---|---|
| Measuring Modes | %Saturation / mg/l (ppm) / Temperature |
| %Saturation Range | 0.0 to 600.0% (depends on sensor) |
| mg/l Range | 0.00 to 60.00 mg/l (ppm) (depends on sensor) |
| Temperature Range | 0.0 to 140.0°C (depends on sensor) |
| Accuracy | ±0.5% of reading (D.O.) ±0.2°C (Temp) |
| Temperature Compensation | Automatic (NTC 30K or NTC 22K) or manual |
| Salinity Correction | 0.0 to 45.0 ppt |
| Pressure Correction | 0.500 to 2.500 bar 7.25 to 36.25 psi 500 to 2500 mmHg (manual adjustment) |
| Calibration | One point or two points |
| Analog Output | Isolated 0/4~20mA, max load 500Ω |
| Temperature Output | 0/4~20mA (DC-5110 only) |
| Serial Interface | RS-485 (RS model only) |
| Event Logbook | 50 event records (RS model only) |
| Relay Contact | 240VAC, 0.5A max |
| Voltage Output | DC ±8V, max 0.5W |
| Power Supply | 100 to 240 VAC ±10%, 50/60 Hz, 8W max |
| Ambient Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Installation | Panel, wall or pipe mounting |
| Dimensions | 96 x 96 x 132 mm |
| Panel Cut-out | 93 x 93 mm |
| Weight | 0.5 kg |
| Protection | IP65 (NEMA 4X) |
