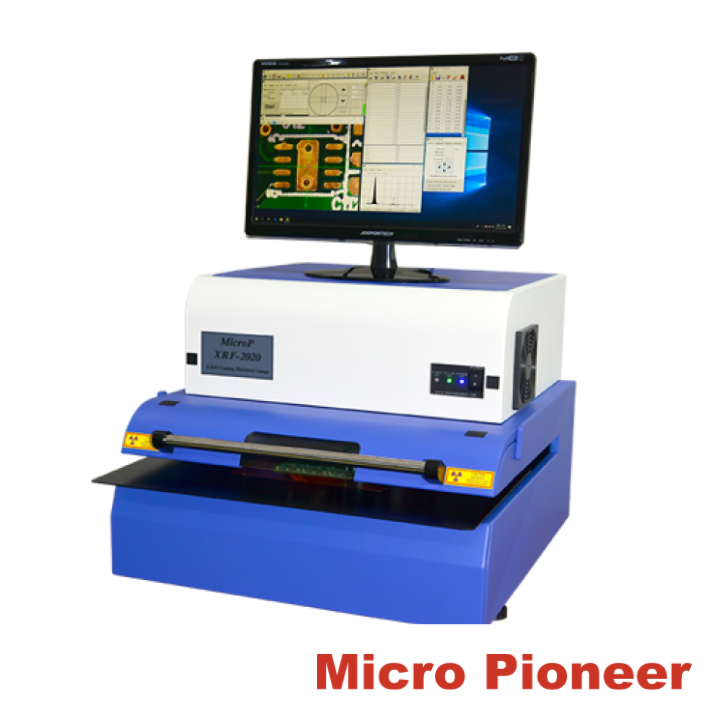

For Automotive parts, PCB, lead frame, small to big component, wafer & panel.

Stage stroke: 200(X) x 180(Y) x 230mm (Z)

Max Weight: 20kg

• Precious metal alloy analysis and Element identification.
• Trace analysis of hazardous materials.
• Coating thickness for multiple layers of Sn-Pb composition.
• Ultra Thin Tri-layer Au/Pd/Ni/Cu & Au-Ag/Pd/Ni/Cu
• Hazardous Materials Detection, ROHS, WEEE and ELV optimized

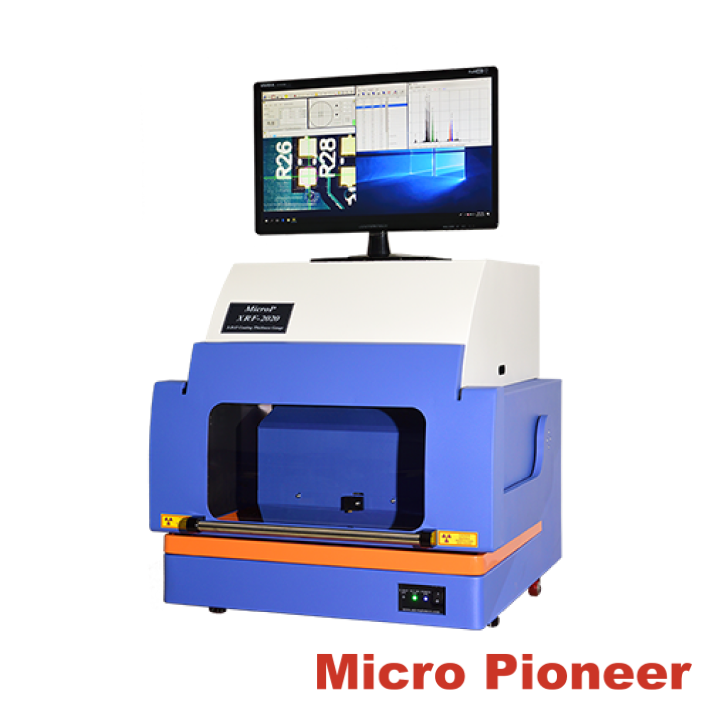

For big size sample to small component.

Stage stroke:

200(X) x 180(Y)x100 (Z) mm

Max Weight: 5kg

• Precious metal alloy analysis and Element identification.
• Trace analysis of hazardous materials.
• Coating thickness for multiple layers of Sn-Pb composition.
• Ultra Thin Tri-layer Au/Pd/Ni/Cu & Au-Ag/Pd/Ni/Cu
• Hazardous Materials Detection, ROHS, WEEE and ELV optimized

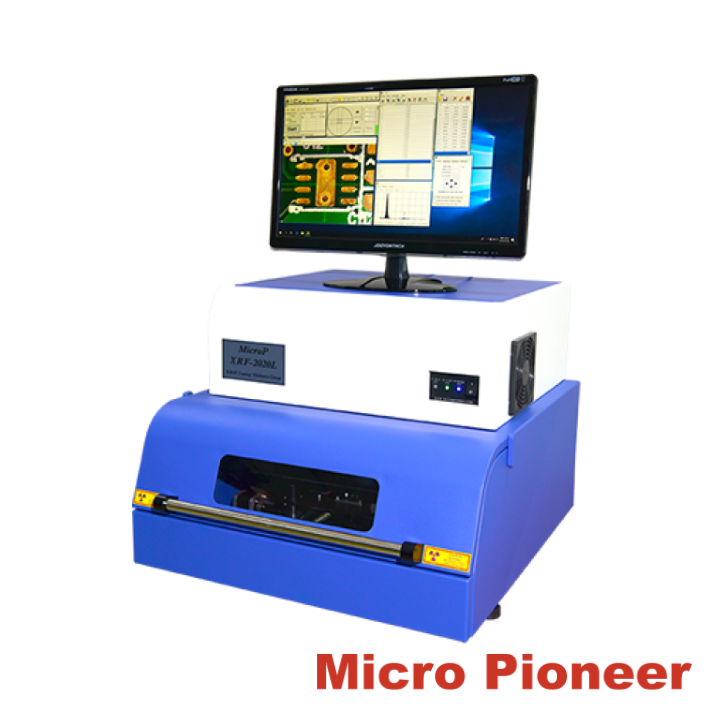

For lead frame, BGA Substrate & small component .

Stage stroke:

200(X) x 180(Y) x 30 (Z) mm

Max Weight: 3kg

• Precious metal alloy analysis and Element identification.
• Trace analysis of hazardous materials.
• Coating thickness for multiple layers of Sn-Pb composition.
• Ultra Thin Tri-layer Au/Pd/Ni/Cu & Au-Ag/Pd/Ni/Cu
• Hazardous Materials Detection, ROHS, WEEE and ELV optimized

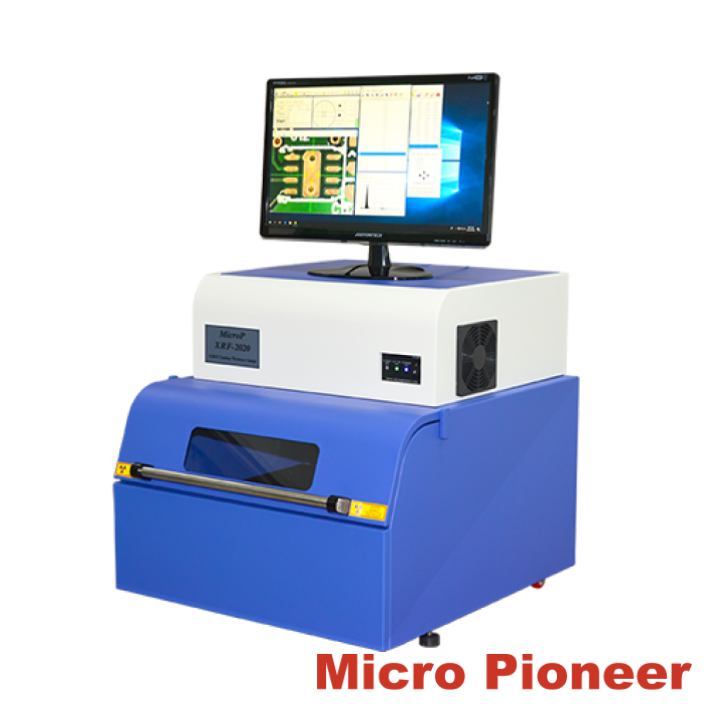

For PCB, lead frame, small

component & panel

Stage stroke: 200(X) x 180(Y) x 100mm (Z)

Max Weight: 5kg

• Precious metal alloy analysis and Element identification.
• Trace analysis of hazardous materials.
• Coating thickness for multiple layers of Sn-Pb composition.
• Ultra Thin Tri-layer Au/Pd/Ni/Cu & Au-Ag/Pd/Ni/Cu
• Hazardous Materials Detection, ROHS, WEEE and ELV optimized

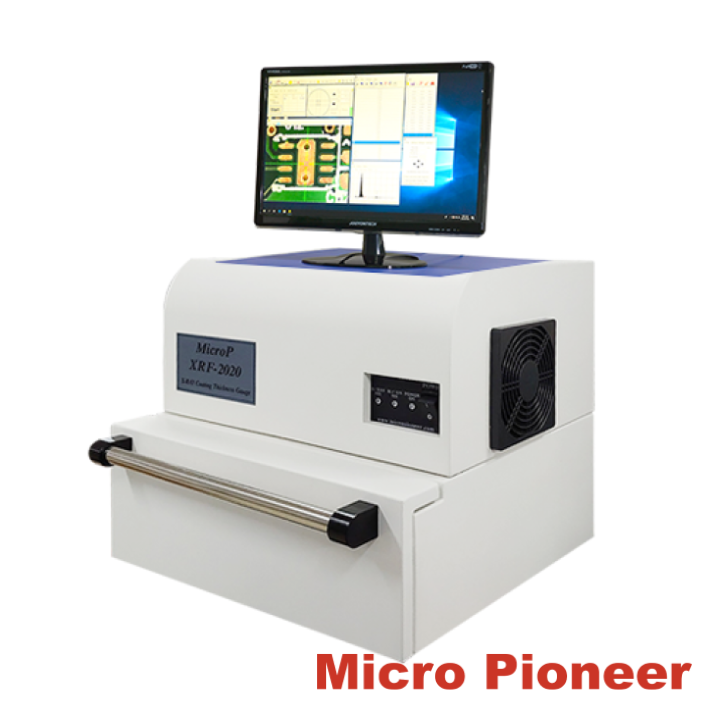

For medium and small sample size (Fastener, screw, nut & others.) Manual Sample Stage. Low cost, Easy maintenance & Operate.

• Precious metal alloy analysis and Element identification.
• Trace analysis of hazardous materials.
• Coating thickness for multiple layers of Sn-Pb composition.
• Ultra Thin Tri-layer Au/Pd/Ni/Cu & Au-Ag/Pd/Ni/Cu
• Hazardous Materials Detection, ROHS, WEEE and ELV optimized

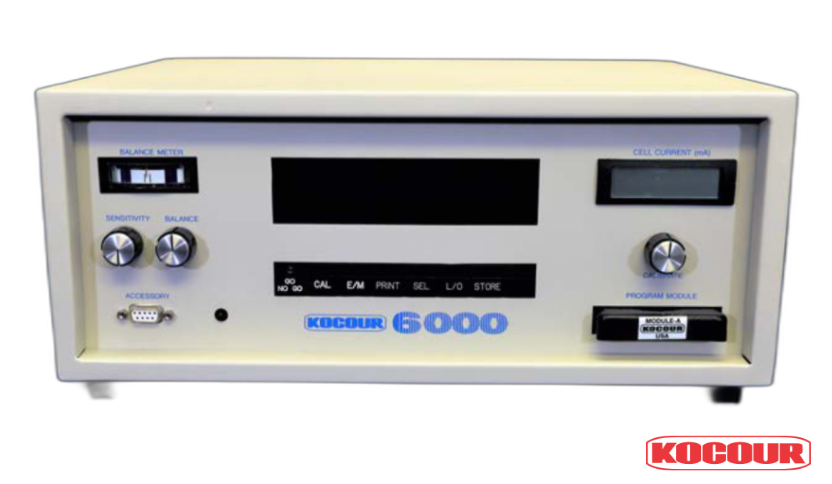

Specification :

• Models for 115V and 230V, 50 or 60Hz
• 98%+ Accuracy
• Meets requirements of ASTM Specifications B504, B298, B355 and ISO Standard 2177.

Applications

• Measures almost all electro-deposited metals on metallic or nonmetallic substrates.
• Measures multiple coatings and gives individual readings.
• Measures thin coatings such as decorative chrome and gold with readings in the millionths of an inch.

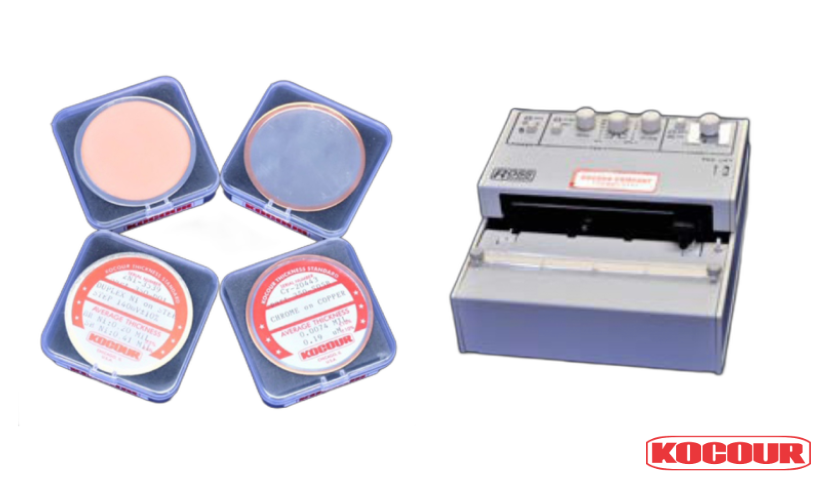

To ensure accurate performance of the 6000, a periodic check should be made utilizing Kocour Thickness Standards. The standards are uniformly plated disks that guarantee and accurate measurement. When necessary, calibration adjustments are easily made. All standards are N.I.S.T. traceable. Kocour offers Stock Standards that are common plating/substrate combinations and thicknesses. Plating layers and substrates not listed in the Stock Standards table can be made upon customer request, as well as varying thicknesses. Standards with multiple plating layers can also be made upon request.
