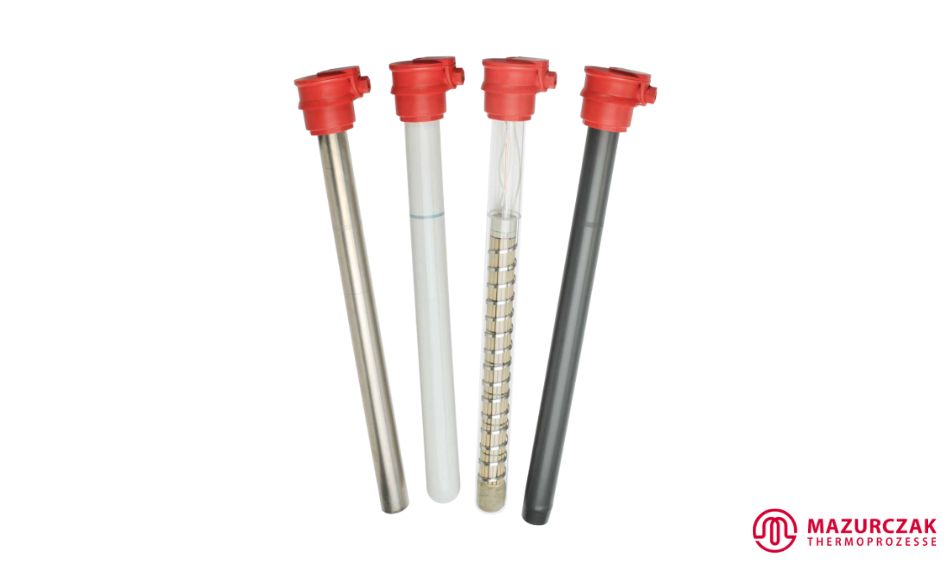

ROTKAPPE Immersion Heaters are most suitable for direct heating of nearly all process liquids and corresponding applications. Excellent chemical resistance is ensured by the use of different immersion tube materials and variable fitting options help you to meet the individual requirements of heating installations. A long life span with optimum reliability is assured by using high quality materials thereby ensuring faultless operation of your system. The ROTKAPPE immersion heater is constructed on a modular basis and consists of a tube, a long-life heating cartridge, a terminal casing and the lead.

eaters with integrated Anti-Burn-System minimize the possibility of thermal damages to plants and tanks in the event of partial or complete loss of the liquid being heated.

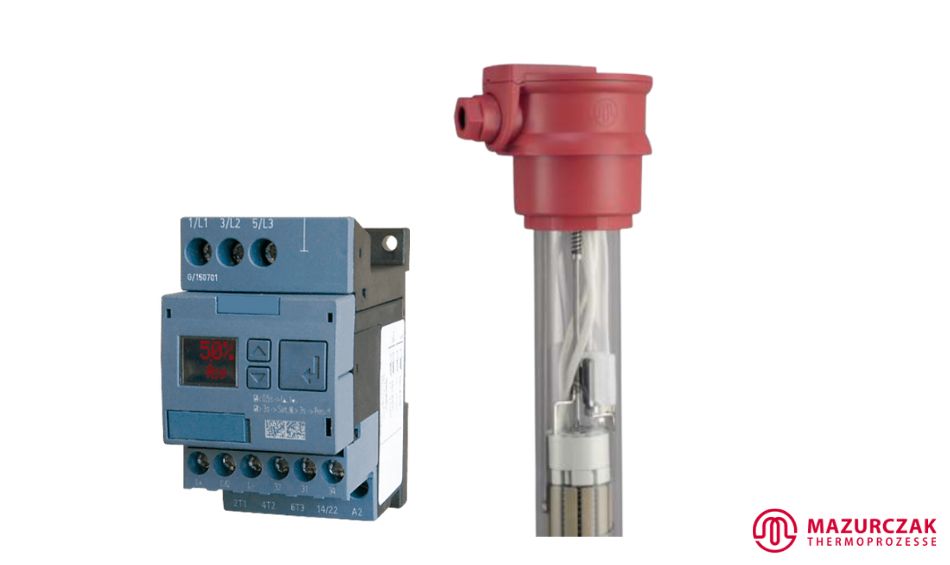

The integrated Anti-Burn-System reacts in case of dangerous situations and switches off the heater when using one- or two-phase connection.In case of a three-phase connection, the integrated Anti-Burn-System switches off the heater with aid of our differential current monitor DSW3/2 and a power relay. The heater remains switched off until the safety circuits in the immersion heater and on the differential current monitor are reset manually.

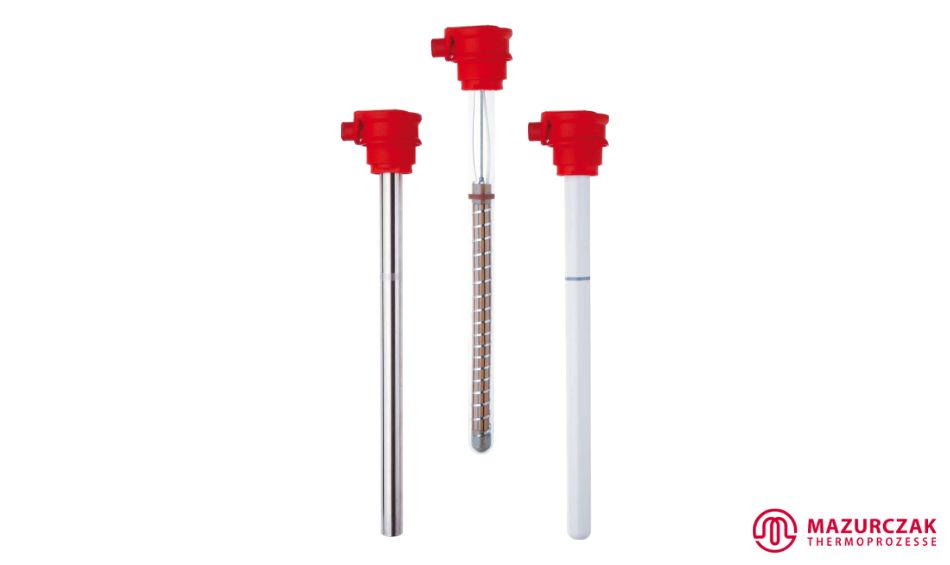

Small immersion heaters are mainly used in small plants and tanks, as well as in laboratories.
For every purpose we are offering an ideal material (porcelain, technical glass, stainless steel, titanium). The small immersion heaters are constructed on a modular basis and these parts are also available separately.

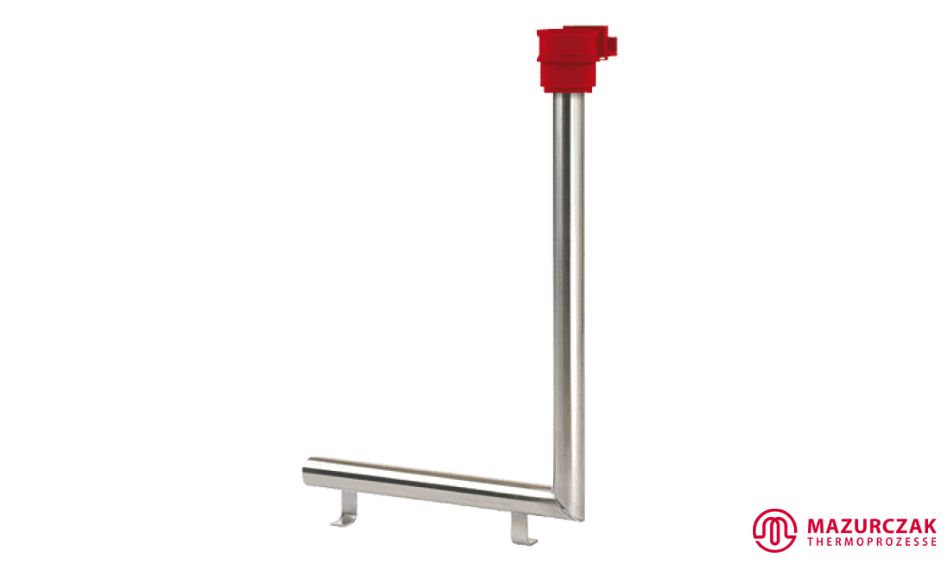

ROTKAPPE angular immersion heaters are the ideal method of direct heating for all containers with a low liquid level or high level fluctuation.
The heating of the liquid from the container bottom is achieved by the horizontal heated immersion tube and this ensures optimum heat radiation as well as good heat distribution. Angular Immersion Heaters are available in metallic materials. One alternative product would be the heaters GALMATHERM with non-metallic materials.

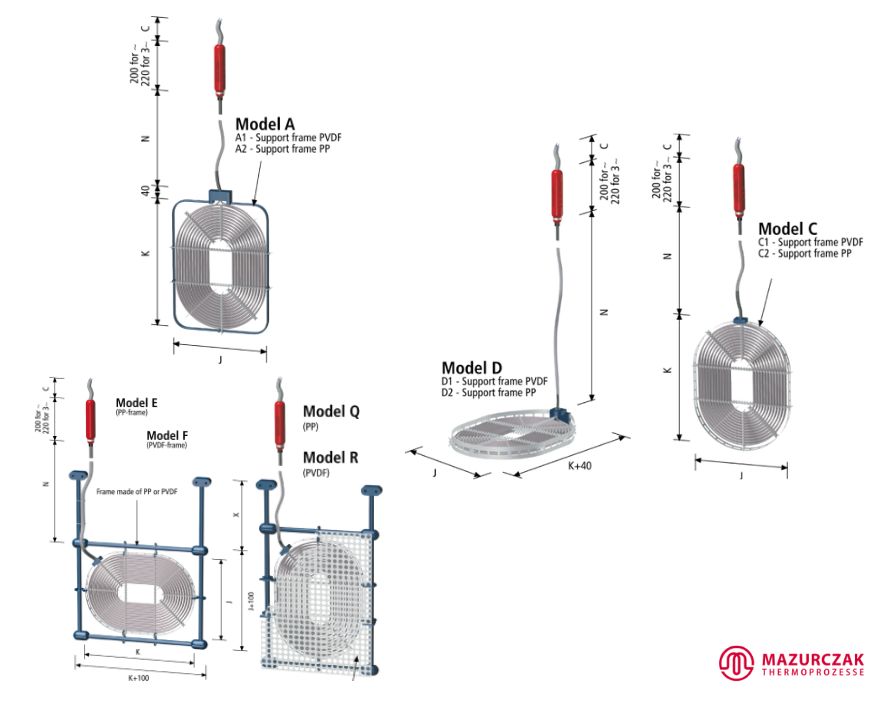

GALMATHERM heaters are designed for use in tanks where space is at a premium and heating capacities as well as good resistance are required. The wide range of different shapes and designs provides simple solutions to even difficult installation problems.

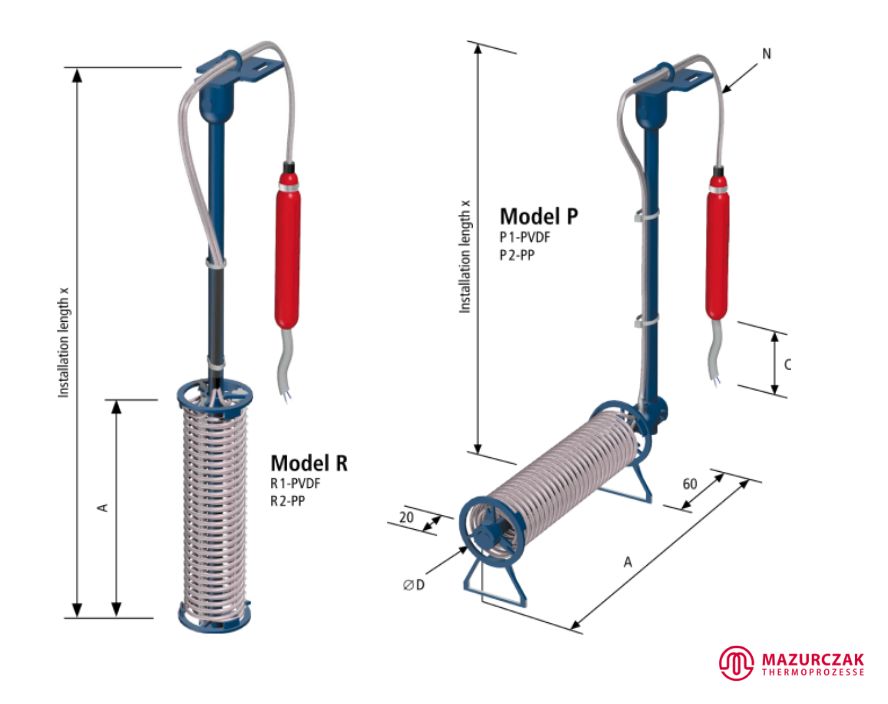

This cylindrical model permits the use of high power even in restricted spaces. The heater model P is an alternative to the ROTKAPPE angular heaters made of metal for heating very agressive liquids.

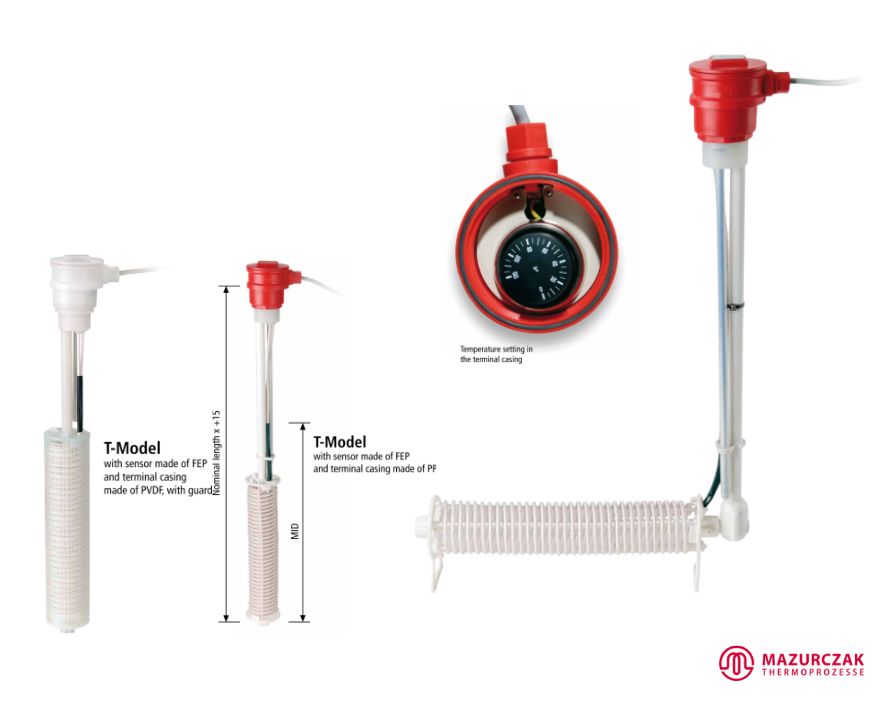

The cylindrical heater GALMATHERM with integrated temperature controller is dedicated for space-saving installation of heating and temperature control in small tanks.

Due to the FEP-coating of heater and temperature controller this product is ideal for universal use in most aggressive liquids.

Heaters with integrated temperature controllers offer the optimal solution especially for smaller containers in which the heater and temperature control have to be installed within a compact space. The heater, the temperature sensor and the switching device are all combined in a single unit. The nominal temperature can be set by the knob within the terminal casing. A change of temperature causes a movement of the switching membrane in a fluid-filled measuring system (capillary tube controller) by the change of volume. The membrane operates a switching contact which turns the heater on and off according to the set nominal temperature.

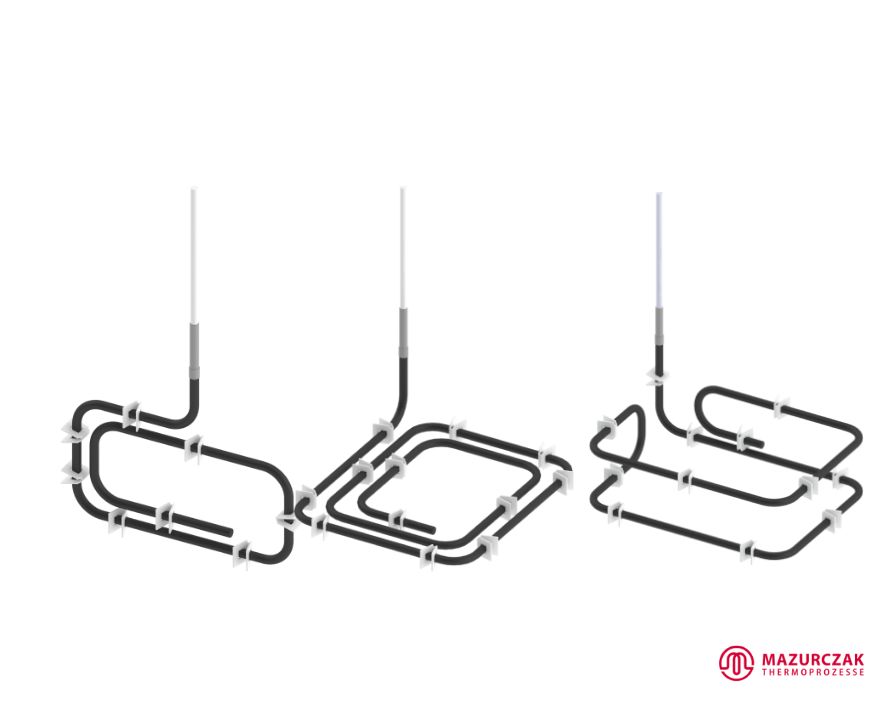

The PFA rod heaters GALMAFORM are electric heaters for direct heat transfer designed for the use in plants and tanks with a minimum physical size. They have excellent resistance to aggressive process liquids. The very high chemical resistance is achieved by a special coating with PFA (perfluoralkoxypolymer).

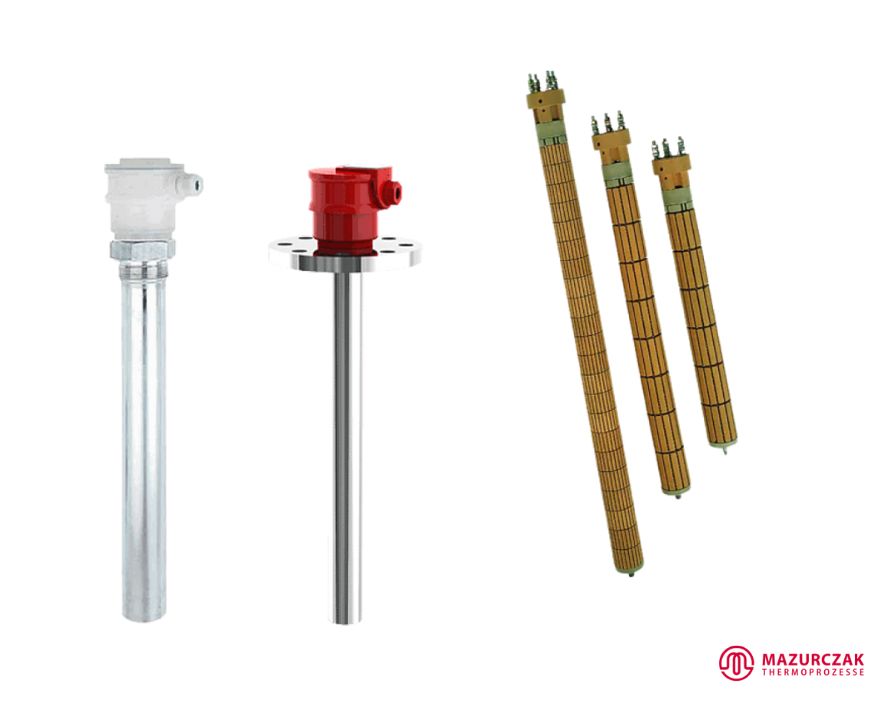

Cartridge heaters can be used under certain conditions for direct heating of smelting, steam and gas.

We adapt our products to customers individual and respective requirements in order to allow as much freedom as possible when planning your system.

The PFA rod heaters GALMAFORM are electric heaters for direct heat transfer designed for the use in plants and tanks with a minimum physical size. They have excellent resistance to aggressive process liquids. The very high chemical resistance is achieved by a special coating with PFA (perfluoralkoxypolymer).
