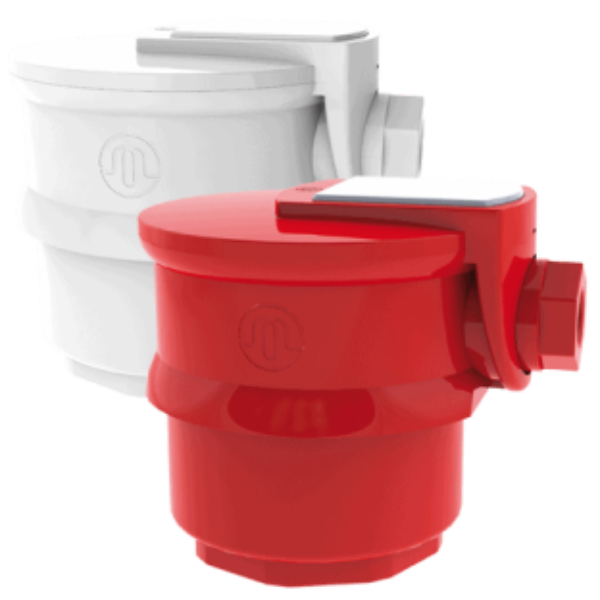

Red Terminal casing named terminal casing BC has material of PP. White Terminal casing named terminal casing BC/L has material of PVDF.

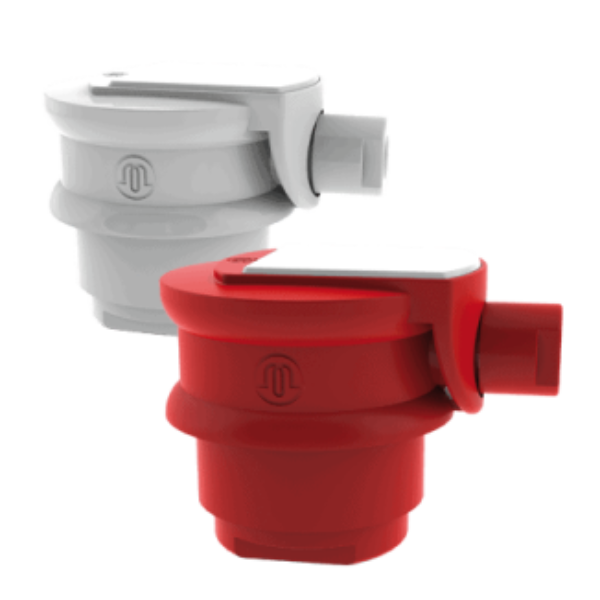

Red Terminal casing named terminal casing LC has material of PP. White Terminal casing named terminal casing LC/L has material of PVDF.

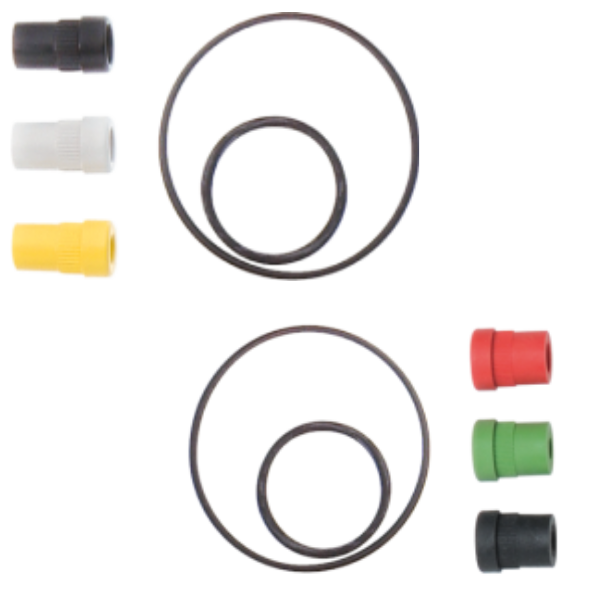

if you buy O ring can get 1 set of seals.

Red Terminal casing named terminal casing BC has material of PP. White Terminal casing named terminal casing BC/L has material of PVDF.

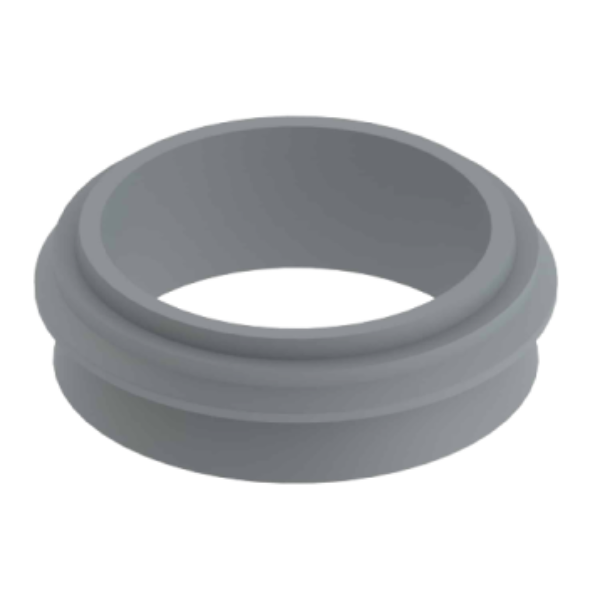

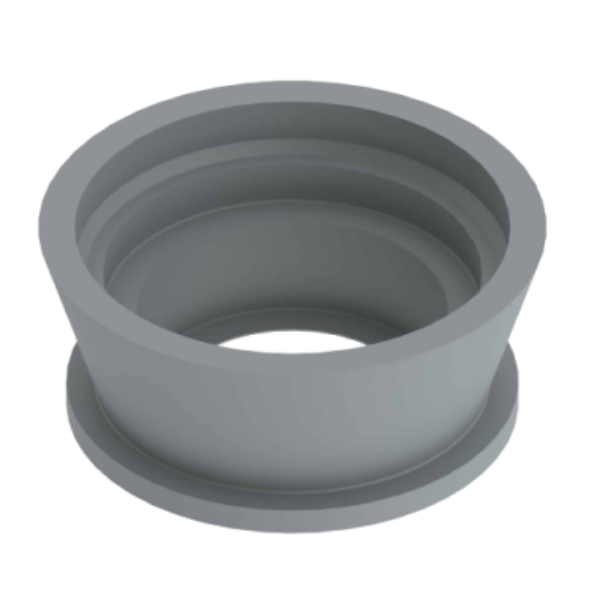

For fixing products with small terminal casing LC or LC/L. Enables space-saving fitting in tank cross-beams.Drill hole diameter: 63mmMaterial: EPDM

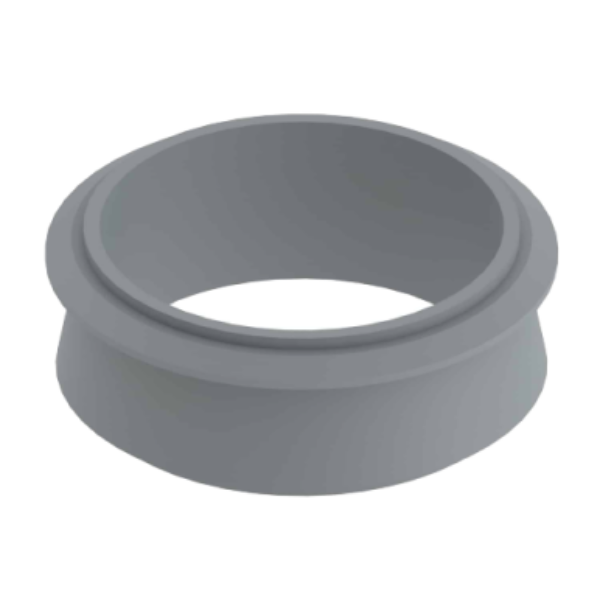

For fixing products with big terminal casings BC or BC/L.In cases of high liquid temperature (>60°C). The drill hole diameter ranges from 70mm to 76mm.Material: EPDM

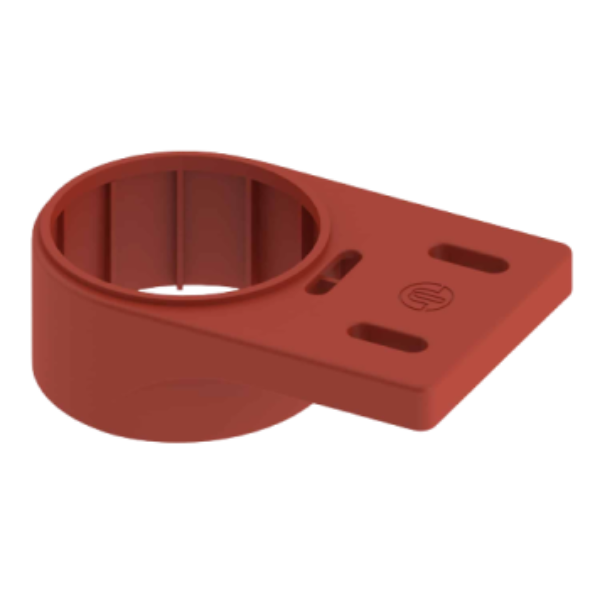

For fixing products with big terminal casings BC.
A very simple method of safely fixing immersion heaters with a maximum tube length of 800mm. The support is screwed onto the traverse and the terminal casing is a simple push-fit.Material: PP

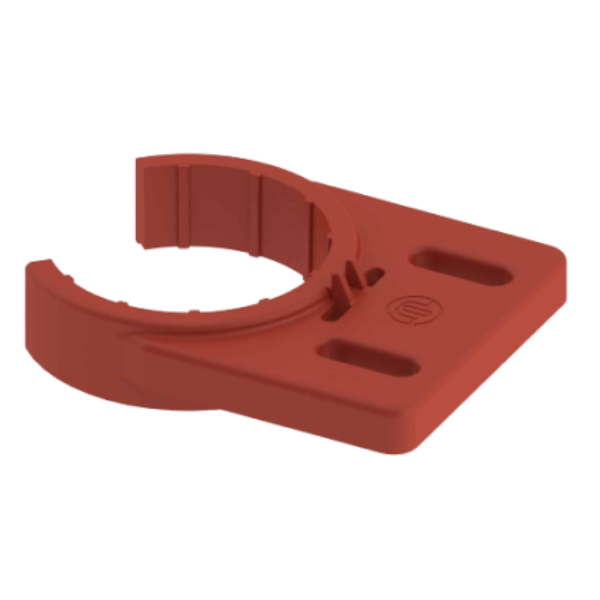

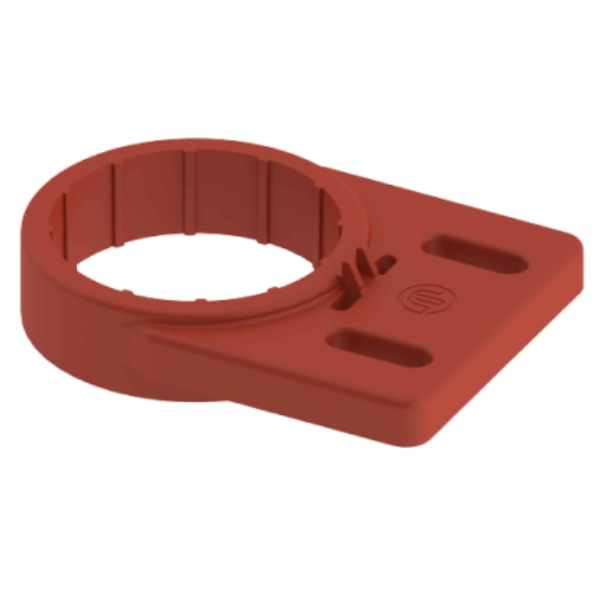

For fixing products with small terminal casing LC.
A very simple method of safely fixing small immersion heaters is guaranteed by using this support. It is screwed firmly onto the tank rim and the terminal casing is a simple push-fit.Material: PP

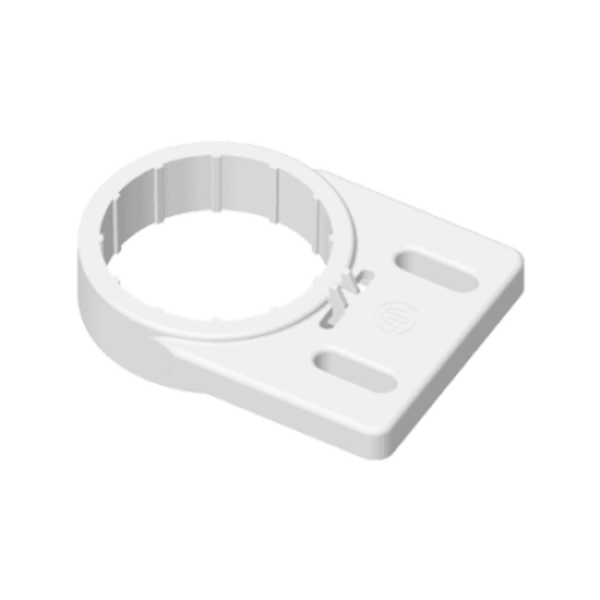

For fixing of products with small terminal casing LC/L.
A very simple method of safely fixing small immersion heaters is guaranteed by using this support. It is screwed firmly onto the tank rim and the terminal casing is a simple push-fit.Material: PVDF

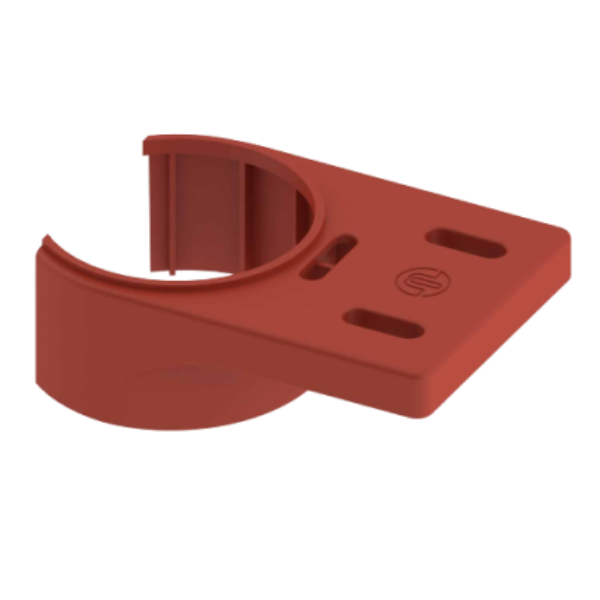

For fixing products with big terminal casing BC, especially for angular immersion heaters or longer temperature and level probes. A very simple method of safely fixing immersion heaters is guaranteed by using this support. It is screwed firmly onto the tank rim and the terminal casing is a simple push-fit.Material: PP

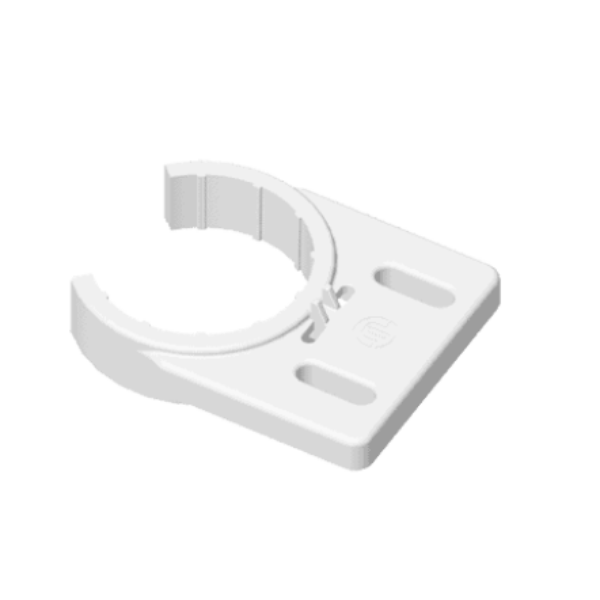

For fixing products with the small terminal casing LC/L, especially long temperature and level probes.
A very simple method of safely fixing small immersion heaters is guaranteed by using this support. It is screwed firmly onto the tank rim and the terminal casing is a simple push-fit.Material: PVDF

For fixing products with the small terminal casing LC, especially longer temperature and level probes.
A very simple method of safely fixing small immersion heaters is guaranteed by using this support. It is screwed firmly onto the tank rim and the terminal casing is a simple push-fit.Material: PP

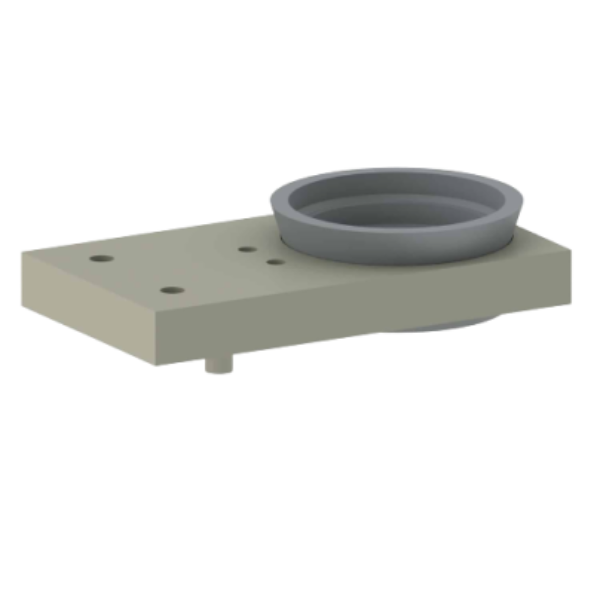

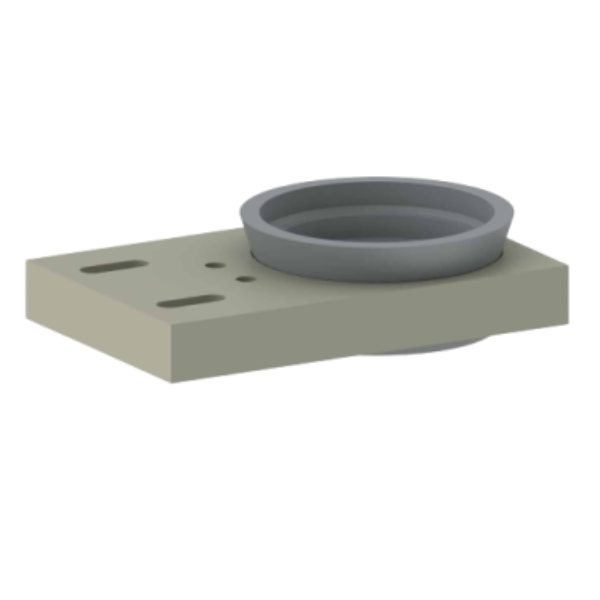

This support with integrated holding sleeve HM is for fixing immersion heaters with terminal casing BC and BC/L and with tube length >800mm.
Material of support: PPMaterial of sleeve: EPDM

Easy fixing of level switches PG and LC is guaranteed by using this support.
The support is screwed onto the tank rim. The screw is for fixing the float switch tube and the adjustment of the switching height.
Material: PP

Support with integrated holding sleeve HM for fixing immersion heaters with integrated Anti-Burn-System.
Material of support: PPMaterial of sleeve: EPDM

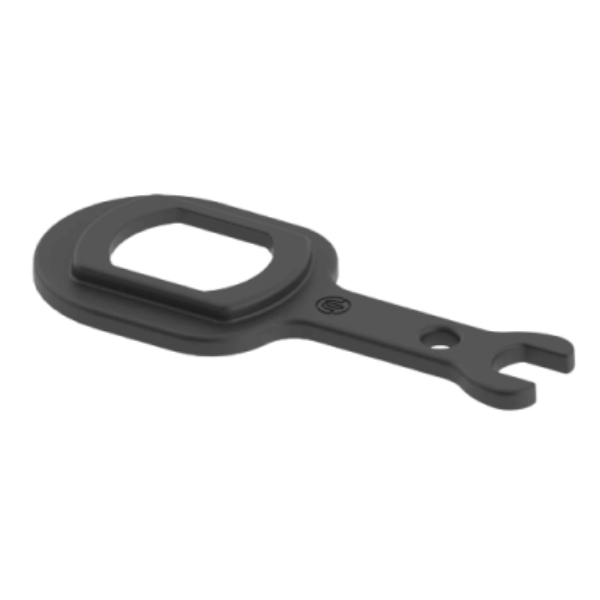

For opening and closing the terminal cap, as well as dismantling the screw thread and the lead screw fixing.It is used for big terminal casings BC and BC/L.
Material: Grivory GVN

Material: Grivory GVN
